CrossCore RC is a versatile, adaptable and accessible eBike that’s ready for whatever the new day brings. It’s been specifically designed to handle everything from urban commuting through to relaxed leisure riding and fitness training. And with zero emissions and low running costs, it’s the right choice for so many reasons

You may be surprised to discover that Yamaha developed the world’s first production eBike 30 years ago. In fact, Yamaha has been building eBikes for the Japanese market for the last three decades – as well as supplying the eBike system that drive many of the eBikes sold in Europe. And the new CrossCore RC urban bike is the start of an exciting new electric future for the company

Odoo - Sample 1 for three columns
Odoo - Sample 2 for three columns
Odoo - Sample 3 for three columns
Odoo - Sample 1 for three columns
Odoo - Sample 2 for three columns
Odoo - Sample 3 for three columns

TEHNIČKE SPECIFIKACIJE

_______________________________________________________

OPĆENITO

          Ukupna težina:  23.9kg
          Veličina kotača:  700C
          Klasa e-bicikala:  Pedal Assist
_______________________________________________________________________

E BIKE SUSTAVI

          Pogonska jedinica:  Yamaha PWSeries ST nosač s 3 vijka
          Baterija:  Yamaha litij-ionska 500Wh, 36V, 13.4Ah
          Zaslon/daljinski:  Zaslon A
          Maksimalna brzina uz pomoć:  25km/h
_______________________________________________________________________

OKVIR

          Yamaha hidroformirani aluminij
          Integrirana baterija
          Water bottle boss. Tapped Headtube. internal shift/brake hose routing.
_______________________________________________________________________

SUSPENZIJE

            SP Suntour NEX E25
           Vilica:   63mm Travel
           Vilica:  12x100mm Thru-Axle
           Stražnji amortizer: N/A
_______________________________________________________________________


_______________________________________________________

KOMPONENTE

          Upravljač:  Alloy, 31.8mm clamp, width 640mm
          Slušalice:  Integrirani ležaj s 30 mm odstojnika
          Stabljika:  31.8 clamp dia. 6 deg rise 80mm
          Hvataljke:  Two-tone ergonomic locking
          Sedlo:  Yamaha Urban Comfort Cro-Mo Rail
          Nosač sjedala:  30.9 diam. Lenght: 345mm (L,M), 295 (S)
          Kočnice:  Shimano BR-MT200
_______________________________________________________________________

POGONSKI SKLOP

          Mjenjači:  Shimano M2010 9-speed
          Rear Derailleur:  Shimano M3100 SGS
          Ručica:  Square Taper Spindle Length S-165mm, M and L - 170
          Lanci:  Alloy 44t
          Lanac: KMC e11 118 links
          Kaseta:  SHIMANO HG400 9-speed 11-13-15-17-20-23-26-30-36T
_______________________________________________________________________

SKUP KOTAČA

          Kotači:  Dual Channel Welded Pin w/ Eyeleted SpokeFront: 12x100mm Quick                                Relese Thru- Axle (QRTA) Rear: 12x142mm QRTA with integrated                                      speed sensor
           Gume:  CST C-1996 27.5 x 2.00
_______________________________________________________________________

For every day, for everyone

At the heart of this great-looking eBike is Yamaha’s best-selling PW-ST drive unit that’s one of the quietest and most responsive motors in its class. As well as providing smooth and quiet performance, this intelligent motor uses sensors that monitor the way you ride and adjust the power assistance to give you the most natural and enjoyable ride.

For a relaxed and upright riding position the durable and lightweight chassis is equipped with flat handlebars – and the front forks give 63 mm of suspension movement to soak up the bumps. The simple Display A interface makes it easy to change riding mode and check battery status – and if you want to personalise your CrossCore RC there’s a wide range of trekking accessories.

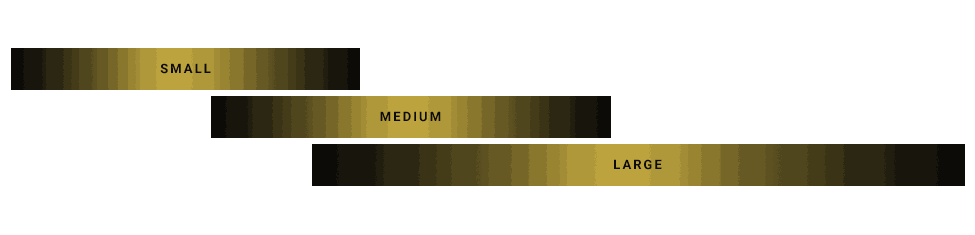

VELIČINA I PRILAGODBA

Odoo - Sample 1 for three columns

GEOMETRY DATA CROSS CORE RC

Odoo - Sample 1 for three columns
Odoo - Sample 3 for three columns

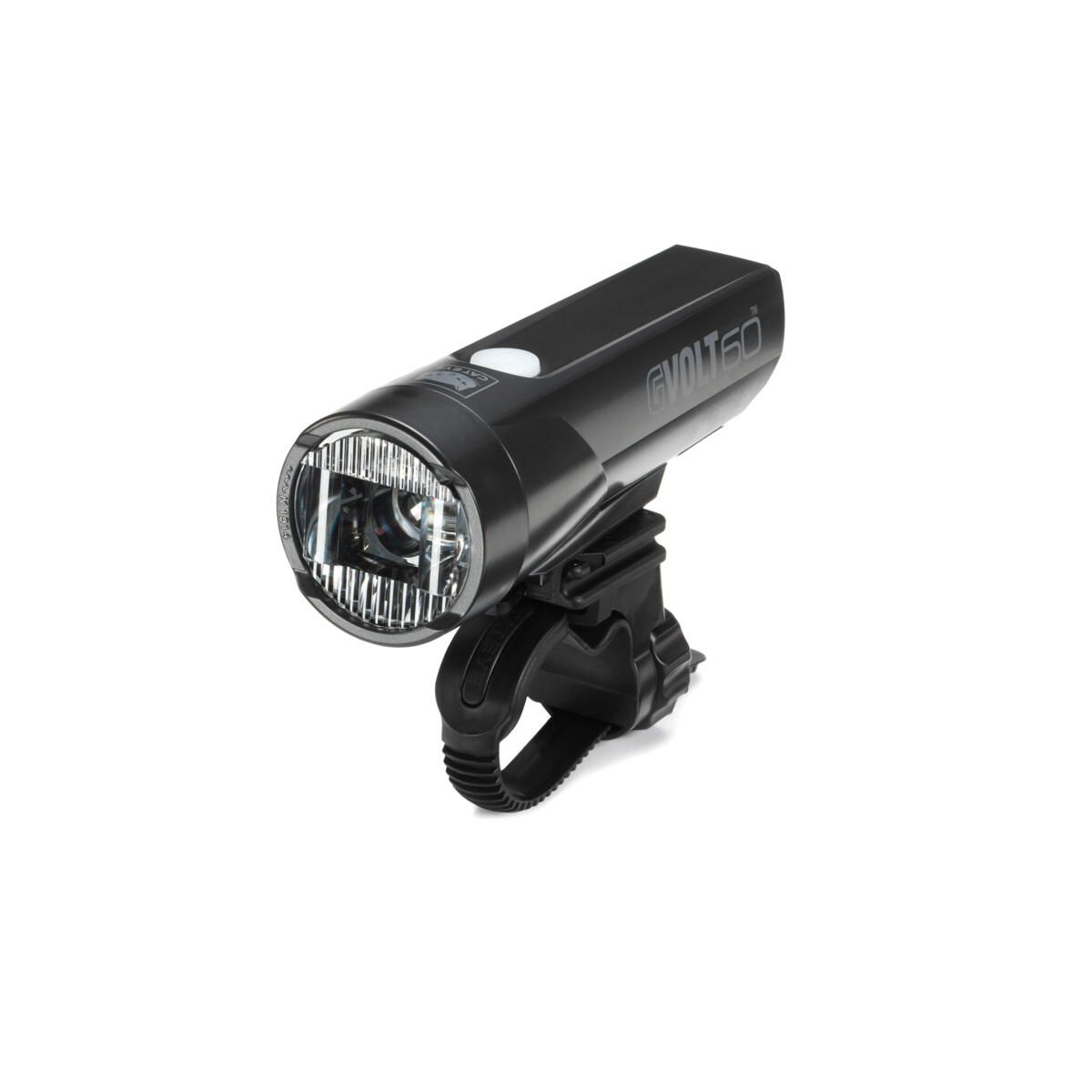

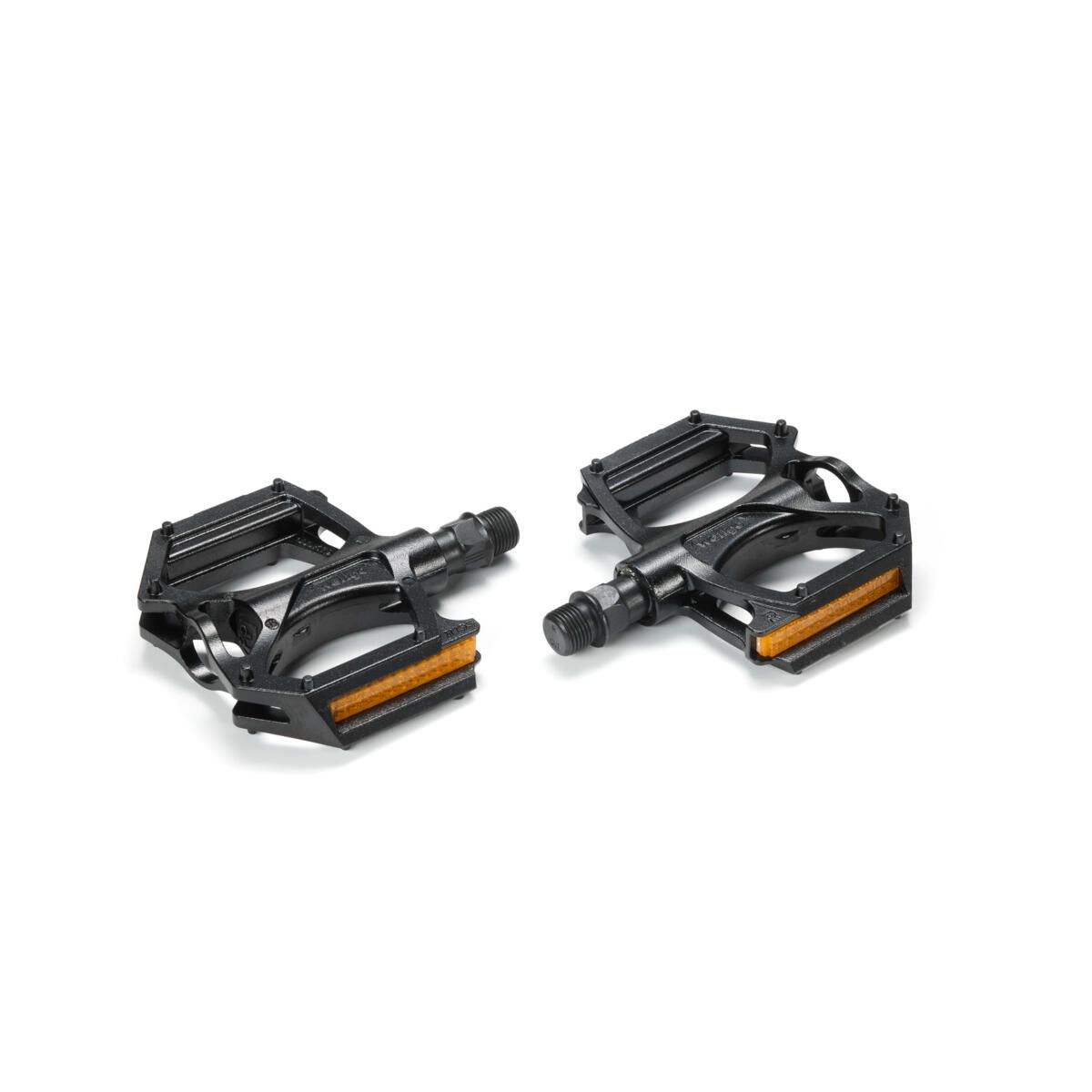

ACCESORIES
