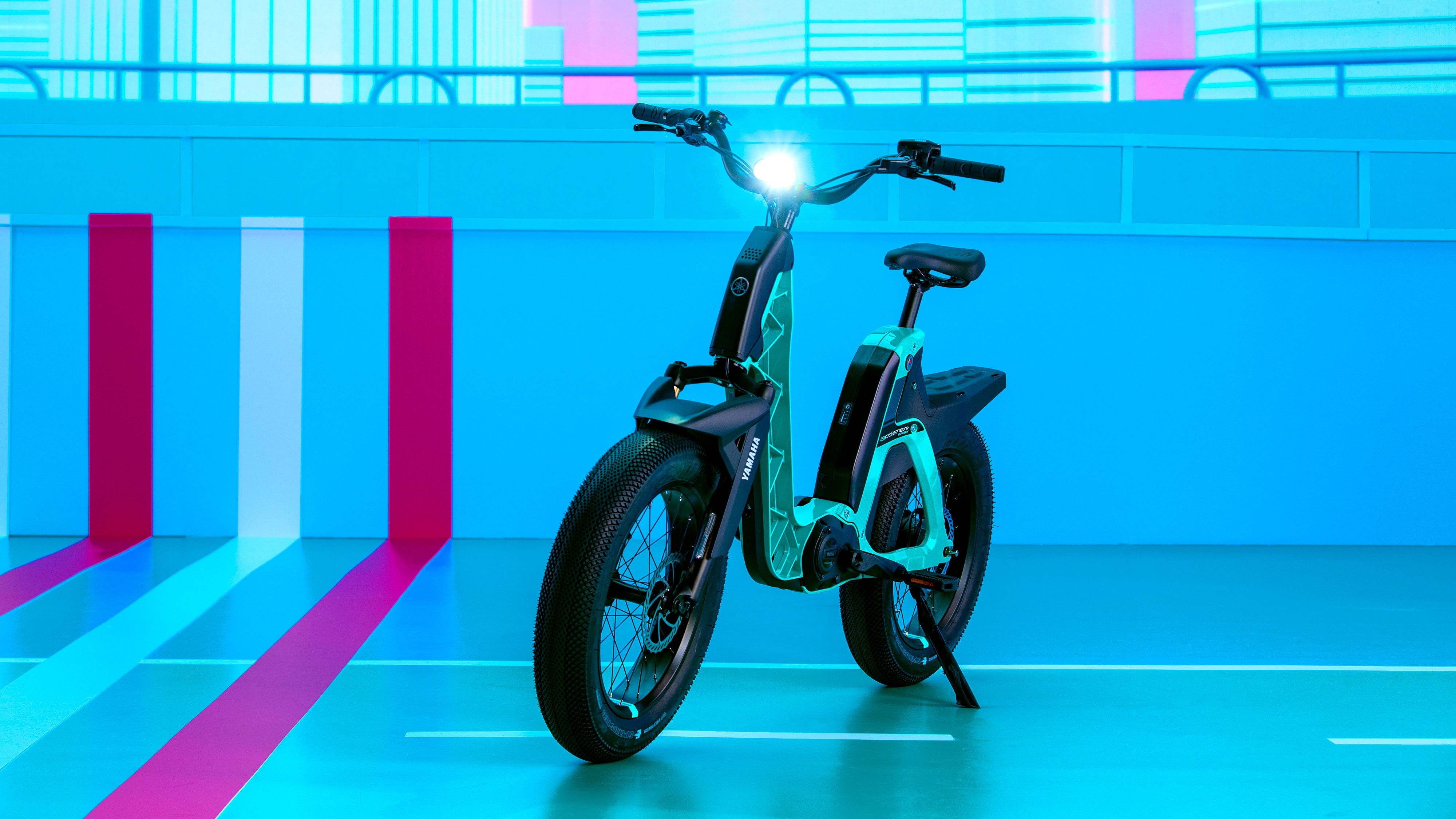

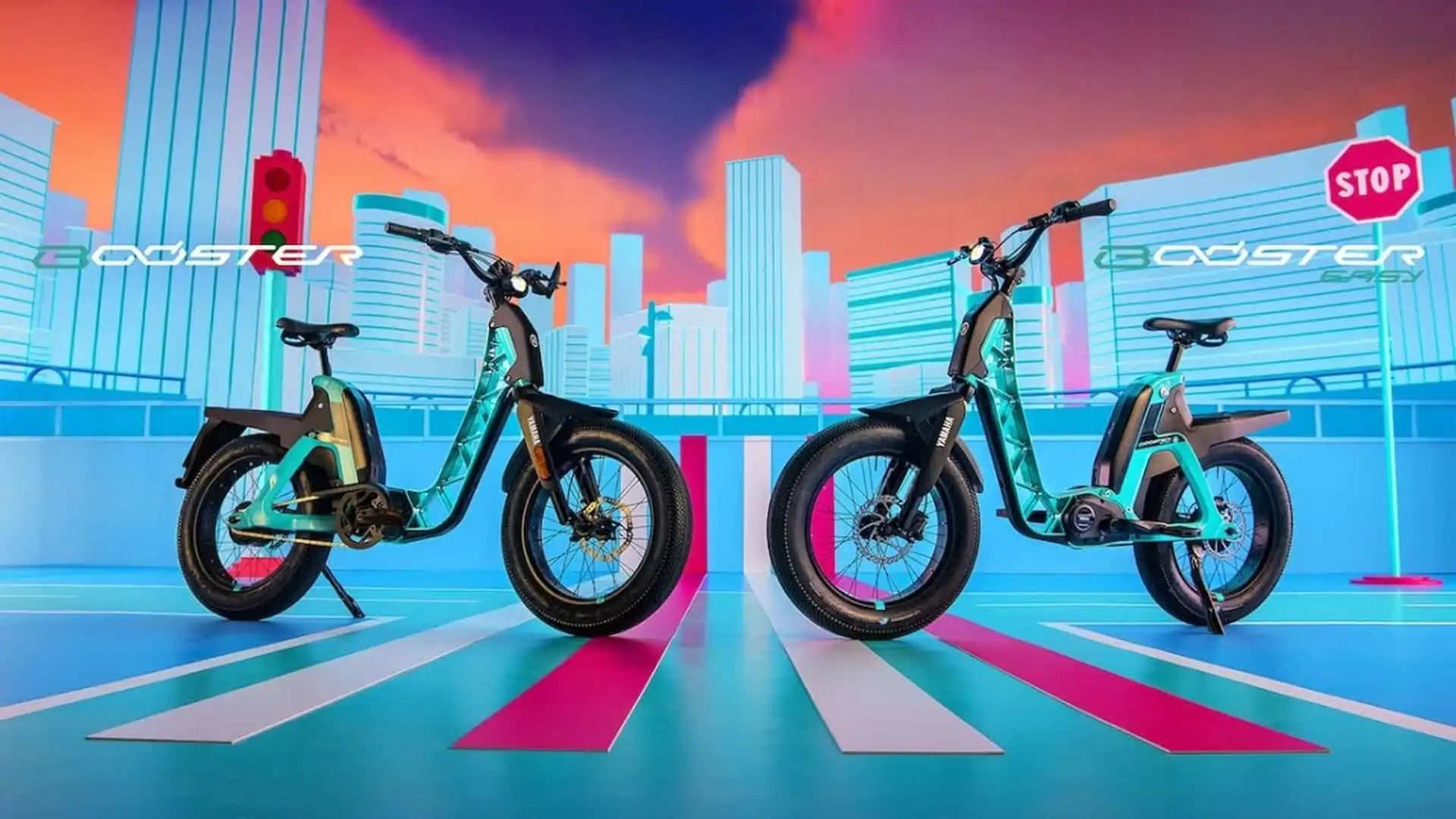

With its ultra-smooth Yamaha drive unit, rugged aluminium chassis and fat high-grip tyres, the new BOOSTER Easy eBike gives you total freedom to move in and around your city. Designed to handle uneven road surfaces with ease, this fun and fashionable eBike is one of the smartest and most efficient personal mobility solutions.

Yamaha’s experience in the design and manufacture of eBikes goes right back to the 1990s when the company produced the world’s very first electrically assisted bicycle. Yamaha has been building eBikes for the Japanese market for three decades – and is also one of the major producers of the drive units used by many of the eBikes manufacturers.

Odoo - Sample 1 for three columns
Odoo - Sample 2 for three columns
Odoo - Sample 3 for three columns
Odoo - Sample 1 for three columns
Odoo - Sample 2 for three columns
Odoo - Sample 3 for three columns

 TECHNICAL SPECIFICATIONS

_______________________________________________________

OPĆENITO

          Totalna tezina:  35kg
          Veličina kotača:  20"
          Klasa e-bicikala:  EPAC
_______________________________________________________________________

E BIKE SUSTAVI

          Pogonska jedinica:  Yamaha PWSeries S2, 75Nm
          Baterija:  Yamaha 630 WH-Baterija, 36V, 17.5 Ah

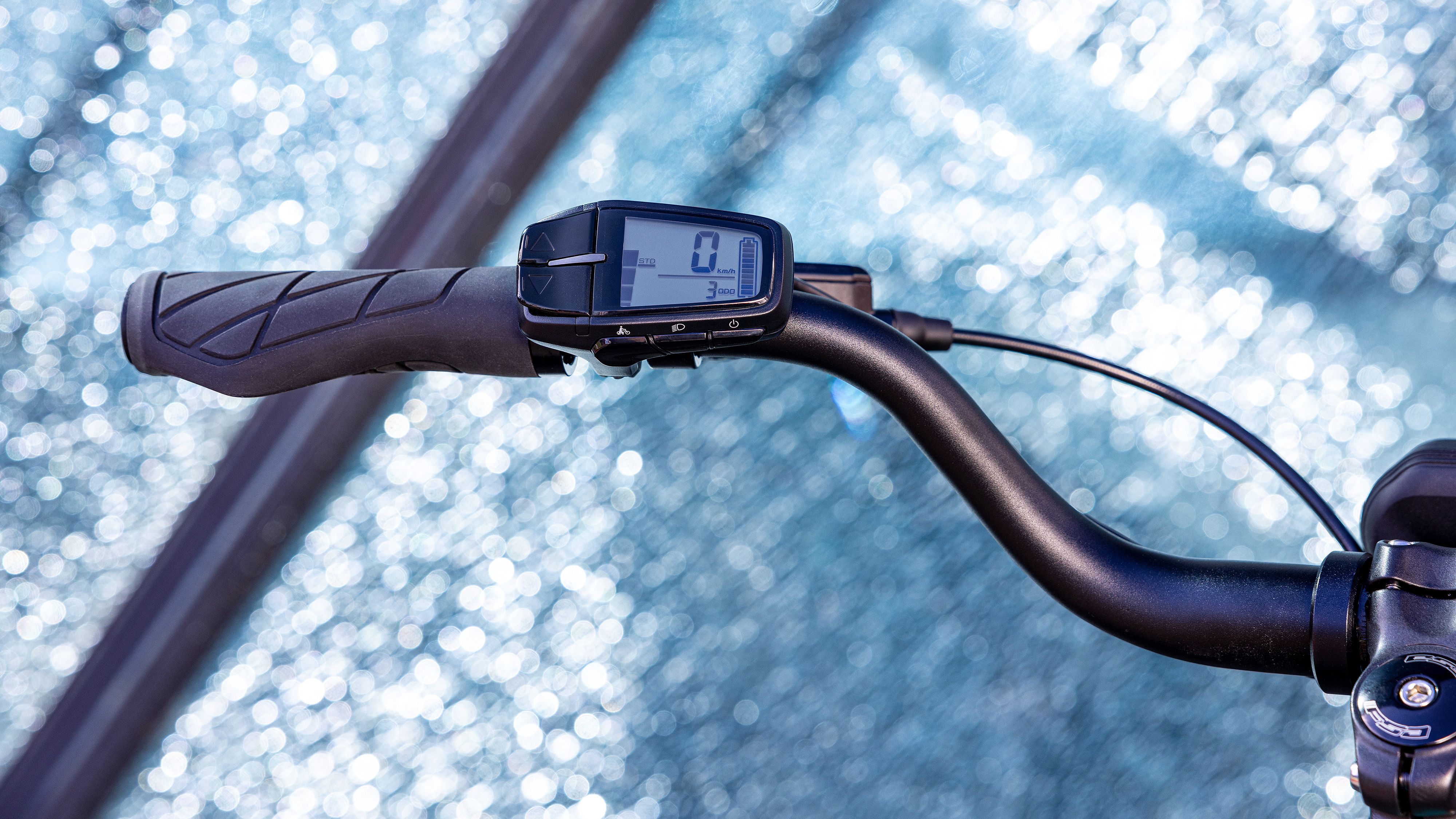

          Zaslon/daljinski:  Yamaha Display A LCD
          Maksimalna brzina uz pomoć:  25km/h ograničenje- 23km/h u praksi
_______________________________________________________________________

OKVIR

          Tehnologija:  Saćasti aluminij
_______________________________________________________________________

SUSPENZIJE

            ZOOM CH-879 AMS 20" - hod 80 mm
_______________________________________________________________________


_______________________________________________________

KOMPONENTE

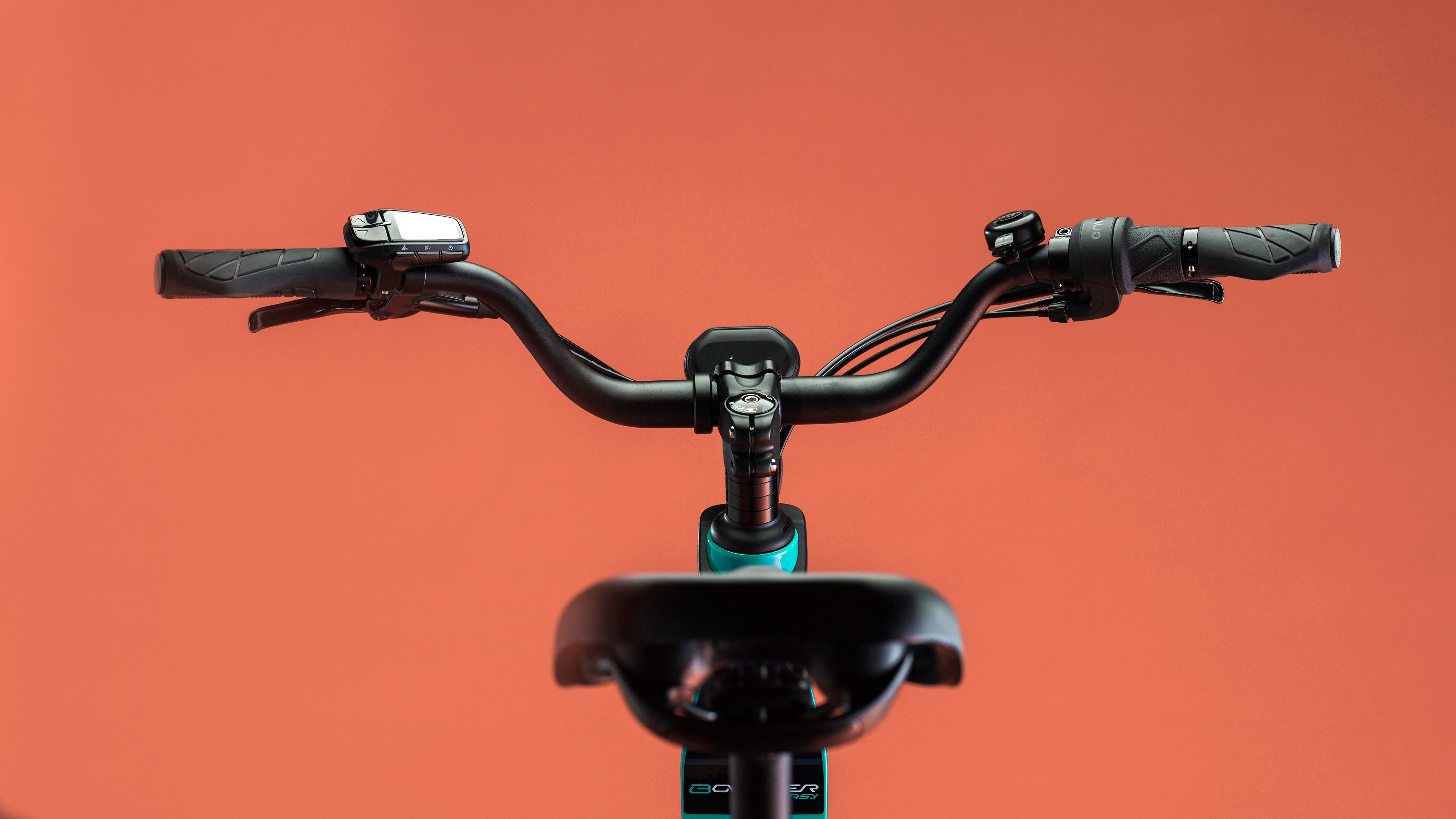

          Upravljač:  PROMAX 750mm
          Slušalice:  FSA polu integrirane
          Stabljika: PROMAX 40mm
          Hvataljke: SWITCH 92-130mm
          Sedlo:  SELLE ROYAL Orbis Unitech
          Nosač sjedala:  PROMAX 350mm

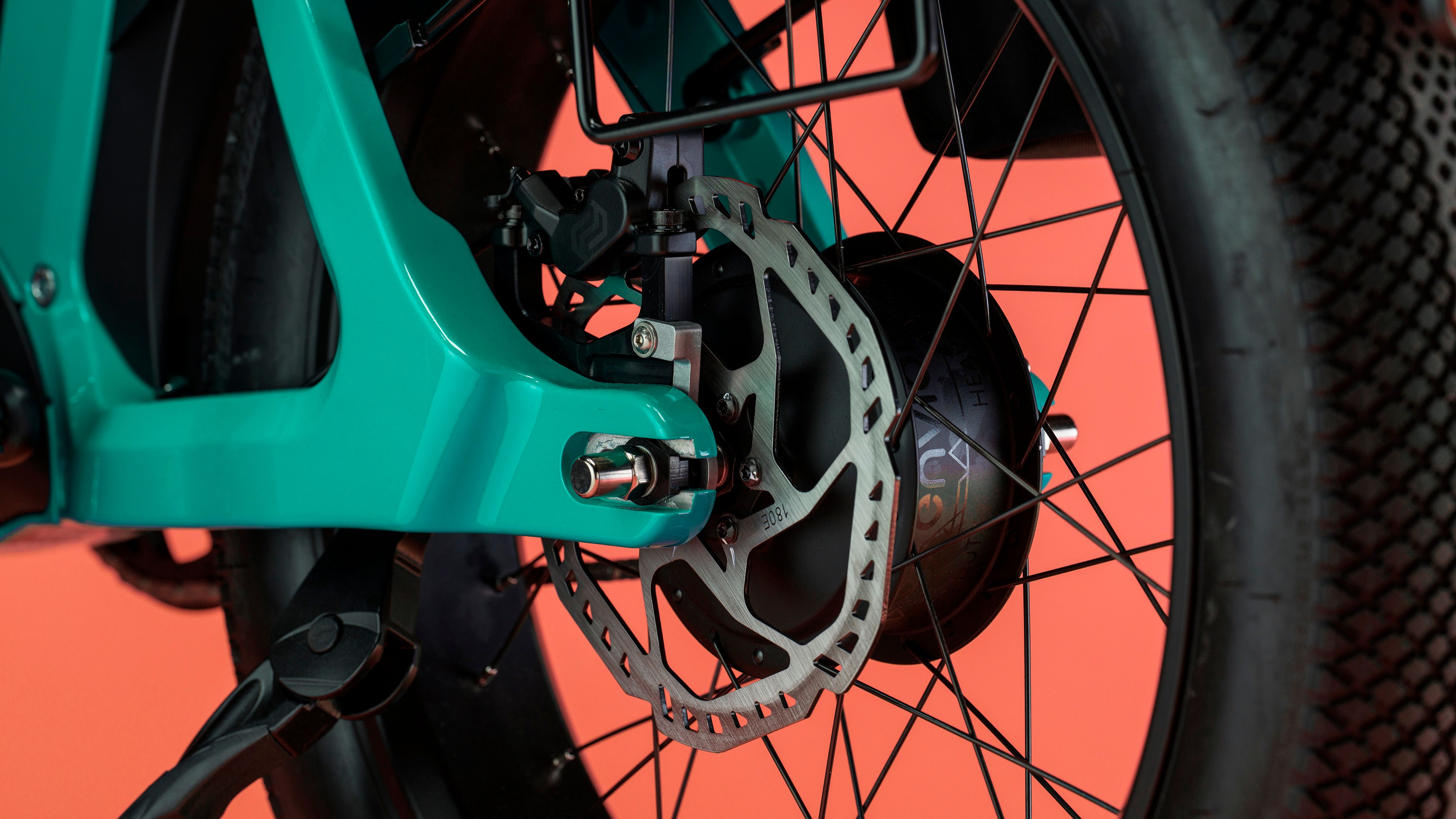

          Kočnice: PROMAX DSK-925 - 180mm F&R Disc
_______________________________________________________________________

POGONSKI SKLOP

          Mjenjači:  ENVIOLO Twist Pure
          Stražnji mjenjač:  ENVIOLO Twist Pure
          Ručica:  FSA ISIS 150mm Custom
          Lanci:  FSA 38D
          Lanac:  KMC 1v Z1eHX Uski(1/2" X 3/32")
          Kaseta:  KMC Enviolo Narrow 16T (1/2" X 3/32")
_______________________________________________________________________

SKUP KOTAČA

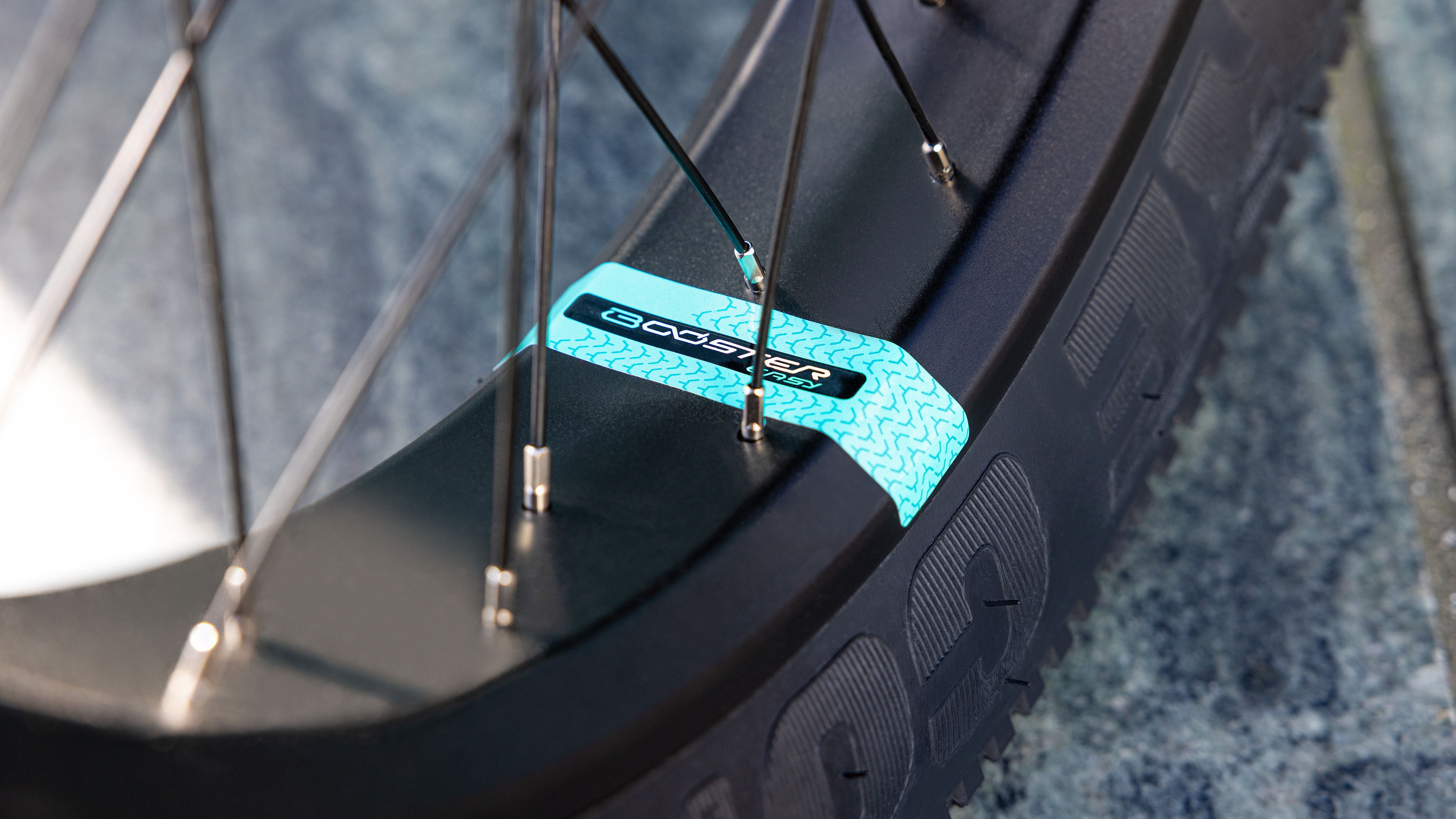

          Kotači:  GIPIEMME 20"
           Gume:  VEE TIRE eSpeedster 20*4.00
_______________________________________________________________________

 Take it Easy

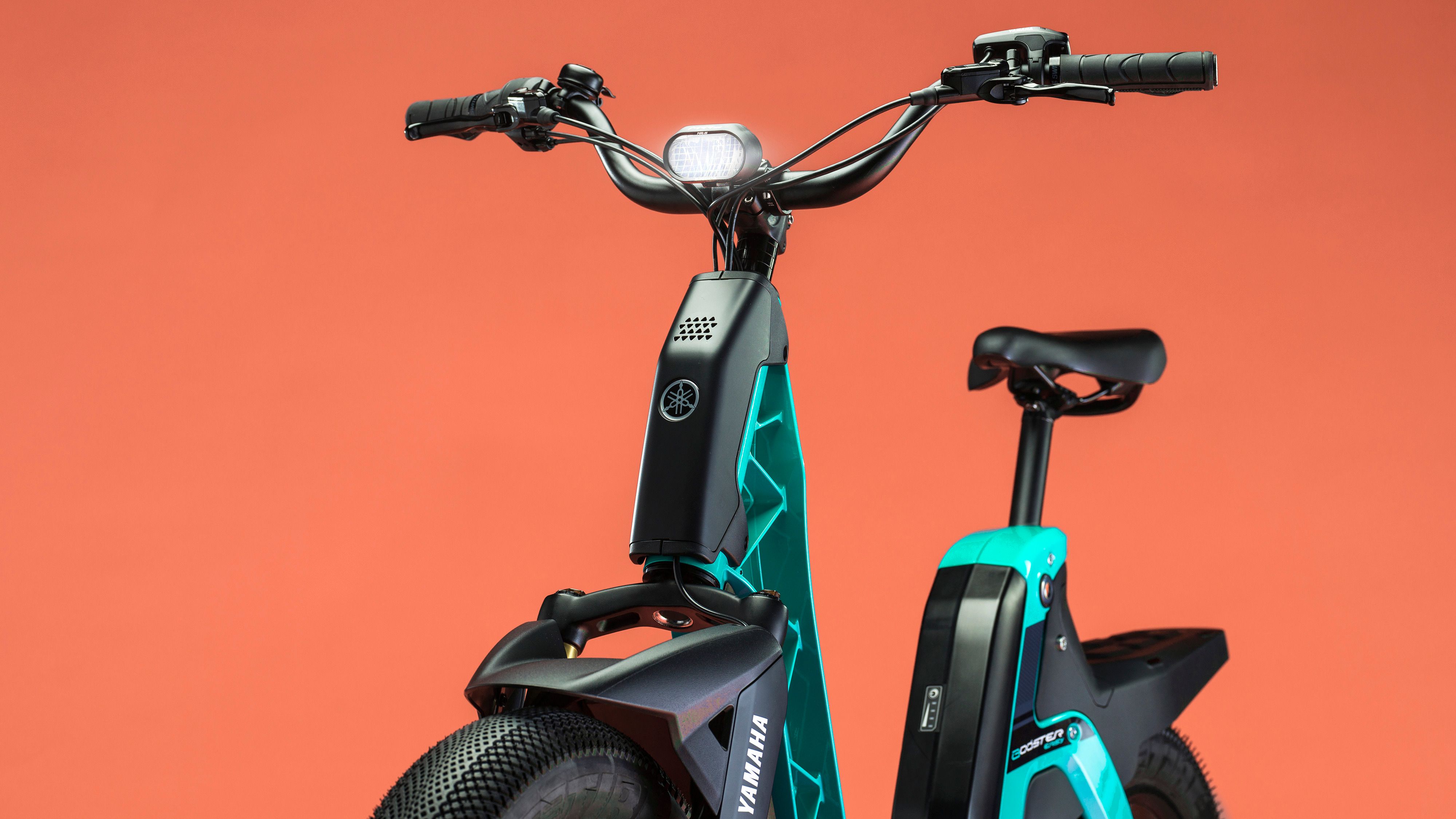

BOOSTER Easy comes fully equipped with a high specification that includes contemporary styling, lightweight instrumentation and compact LED lighting for 24/7 use. Its low center of gravity gives you easy agility with confident stability – and with its rear carrier and the option to fit baskets and inner bags, it’s functional as well as being fun.

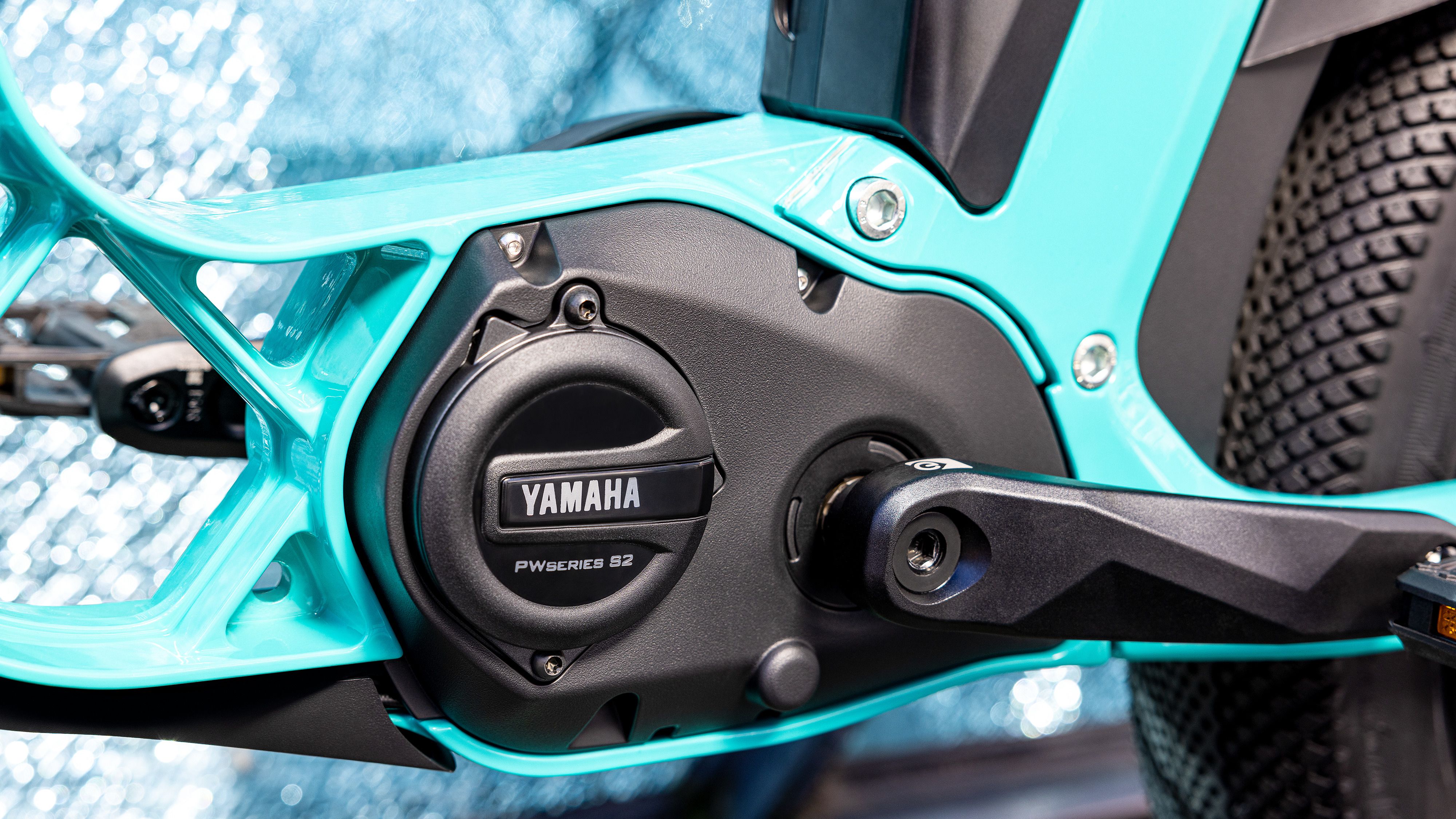

Instant pedal assistance is provided by a premium Yamaha PWseries-S2 drive unit that gives a totally natural riding feeling – and the 630Wh 36 volt Yamaha battery powers you to a maximum assisted speed of 25km/h and a range of up to 120 km.* And with convenient online ordering via Yamaha Omnichannel, your new BOOSTER Easy eBike could be just one click away! *Fully charged battery, depending on running mode.

 SIZING & FIT

Odoo - Sample 1 for three columns

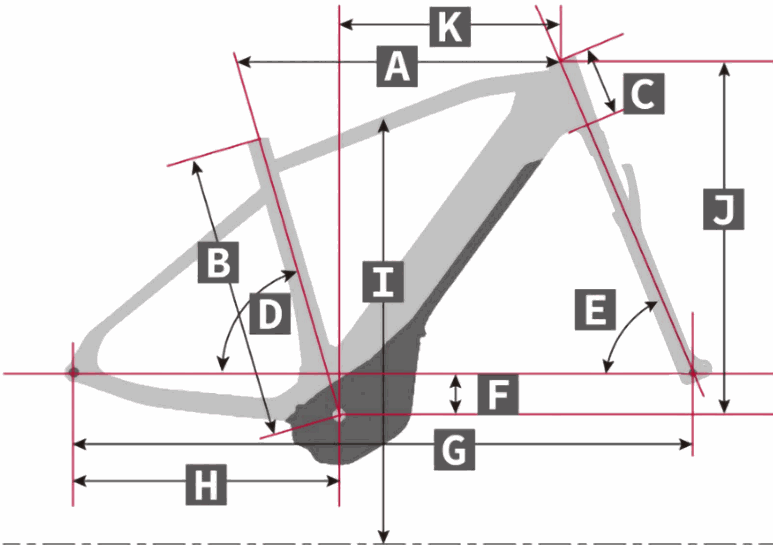

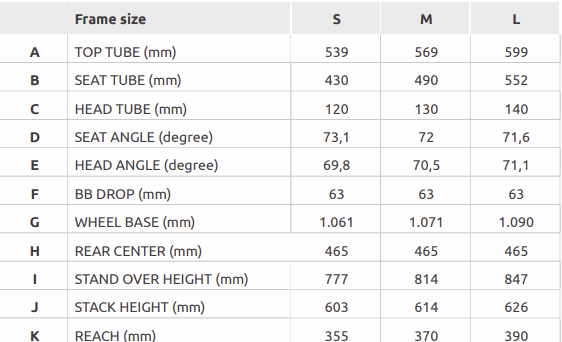

 GEOMETRY DATA BOOSTER EASY

Odoo - Sample 1 for three columns
Odoo - Sample 3 for three columns

 ACCESORIES
