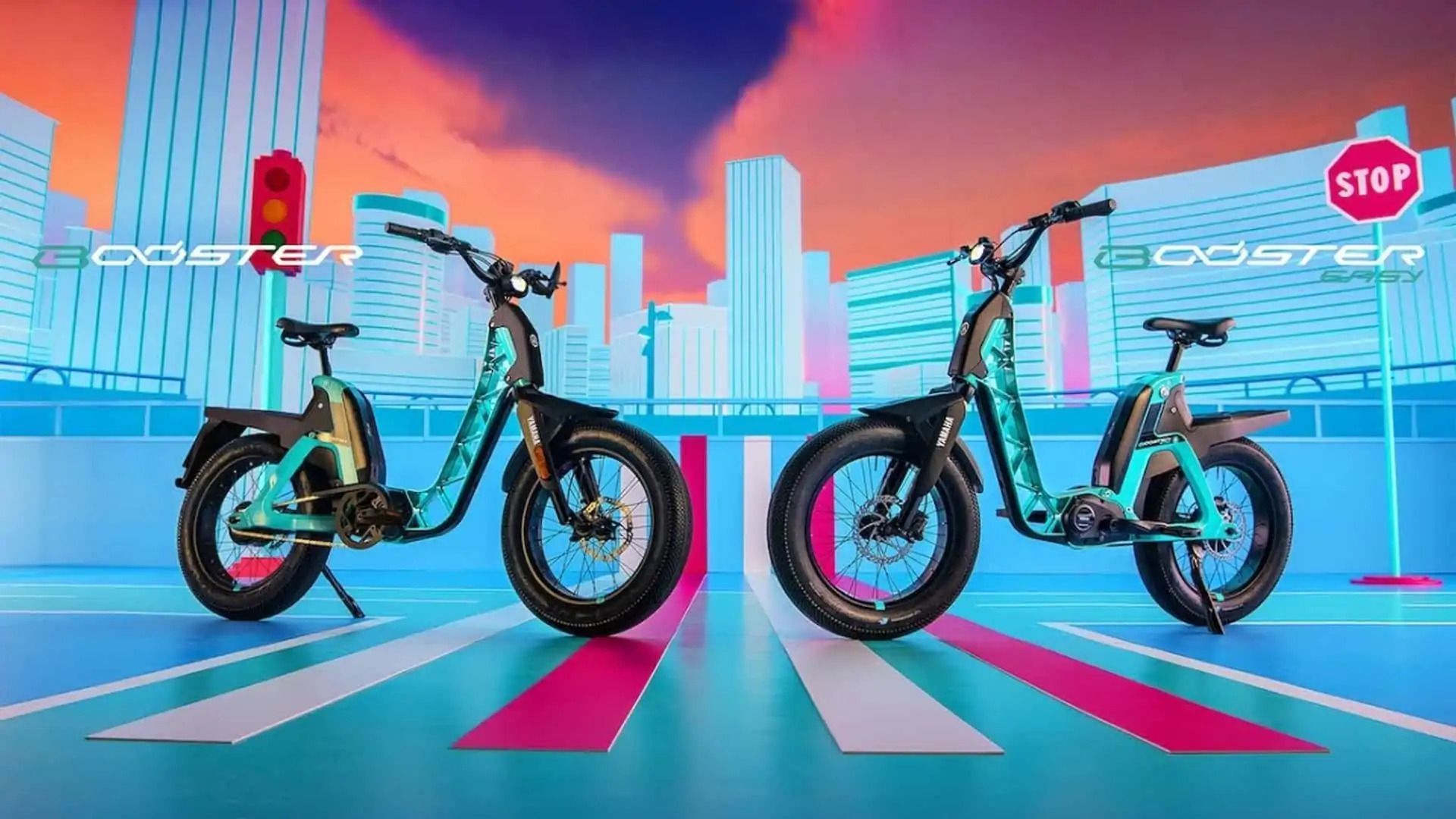

With its ultra-smooth Yamaha drive unit, rugged aluminium chassis and fat high-grip tyres, the new BOOSTER Easy eBike gives you total freedom to move in and around your city. Designed to handle uneven road surfaces with ease, this fun and fashionable eBike is one of the smartest and most efficient personal mobility solutions.

Yamaha’s experience in the design and manufacture of eBikes goes right back to the 1990s when the company produced the world’s very first electrically assisted bicycle. Yamaha has been building eBikes for the Japanese market for three decades – and is also one of the major producers of the drive units used by many of the eBikes manufacturers.

Odoo - Sample 1 for three columns
Odoo - Sample 2 for three columns
Odoo - Sample 3 for three columns
Odoo - Sample 1 for three columns
Odoo - Sample 2 for three columns
Odoo - Sample 3 for three columns

 TECHNICAL SPECIFICATIONS

_______________________________________________________

GENERAL

          Total weight:  35kg
          Wheel size:  20"
          E-Bike Class:  EPAC
_______________________________________________________________________

E BIKE SYSTEMS

           Drive Unit:  Yamaha PWSeries S2, 75Nm
          Battery:  Yamaha 630 WH-Batterie, 36V, 17.5 Ah

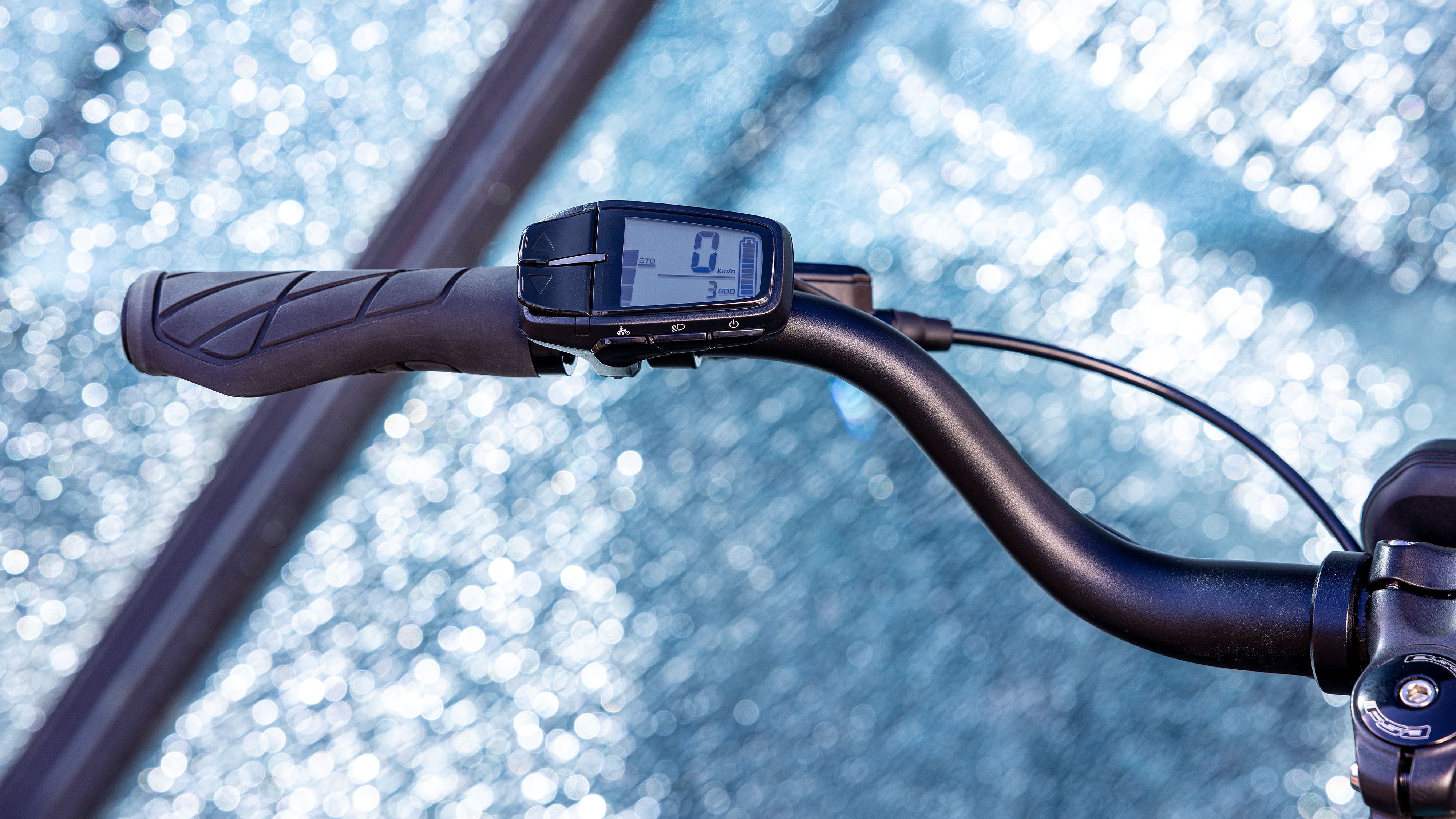

          Display / Remote:  Yamaha Display A LCD
          Max Speed with Assist:  25km/h limited - 23km/h usage
_______________________________________________________________________

FRAME

          Technology:  Honeycomb Aluminium
_______________________________________________________________________

SUSPENSIONS

           Fork:  ZOOM CH-879 AMS 20" - 80mm travel
_______________________________________________________________________


_______________________________________________________

COMPONENTS

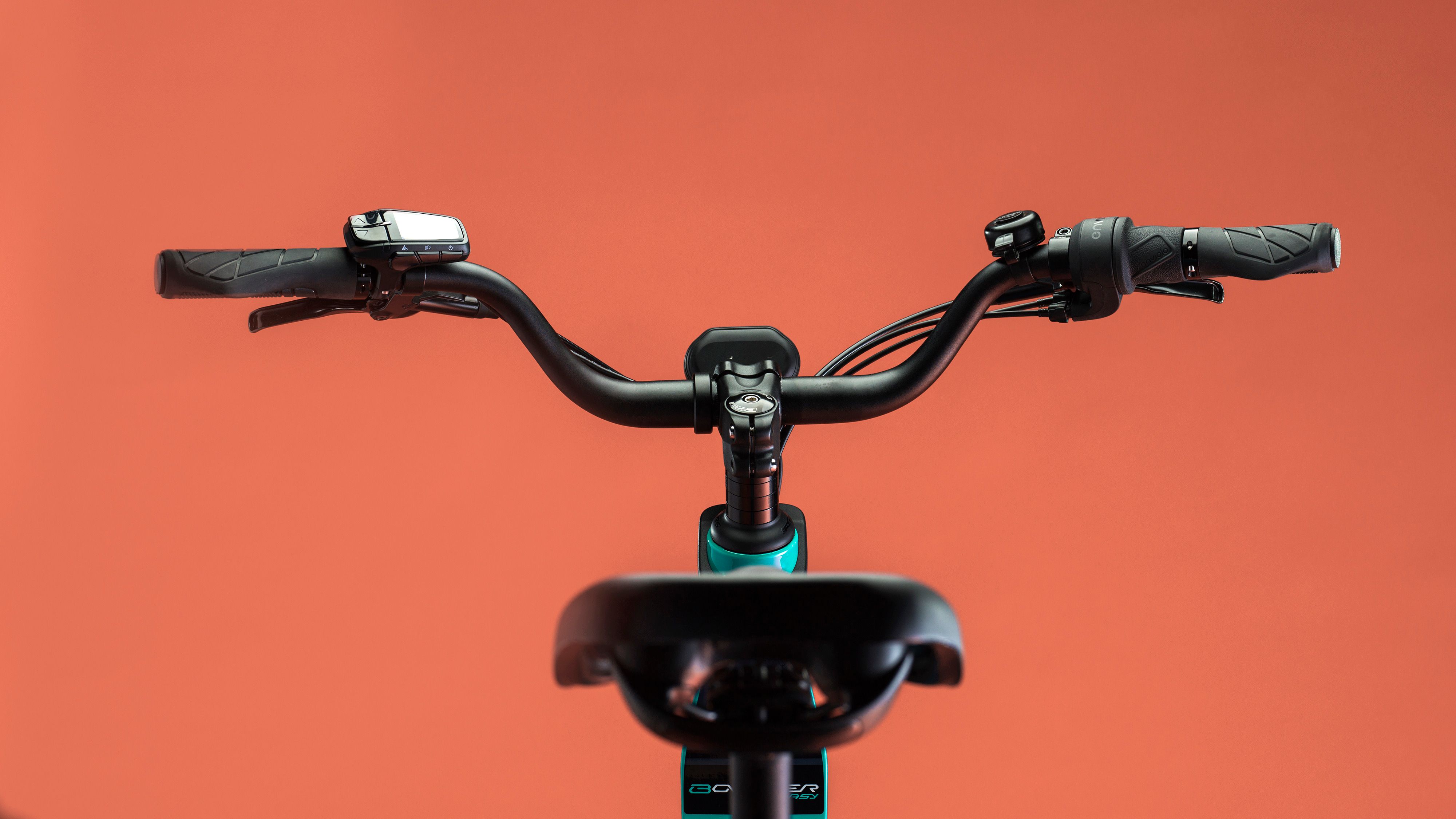

          Handlebar:  PROMAX 750mm
          Headset:  FSA semi integrated
          Stem: PROMAX 40mm
          Grips: SWITCH 92-130mm
          Saddle:  SELLE ROYAL Orbis Unitech
          Seatpost:  PROMAX 350mm

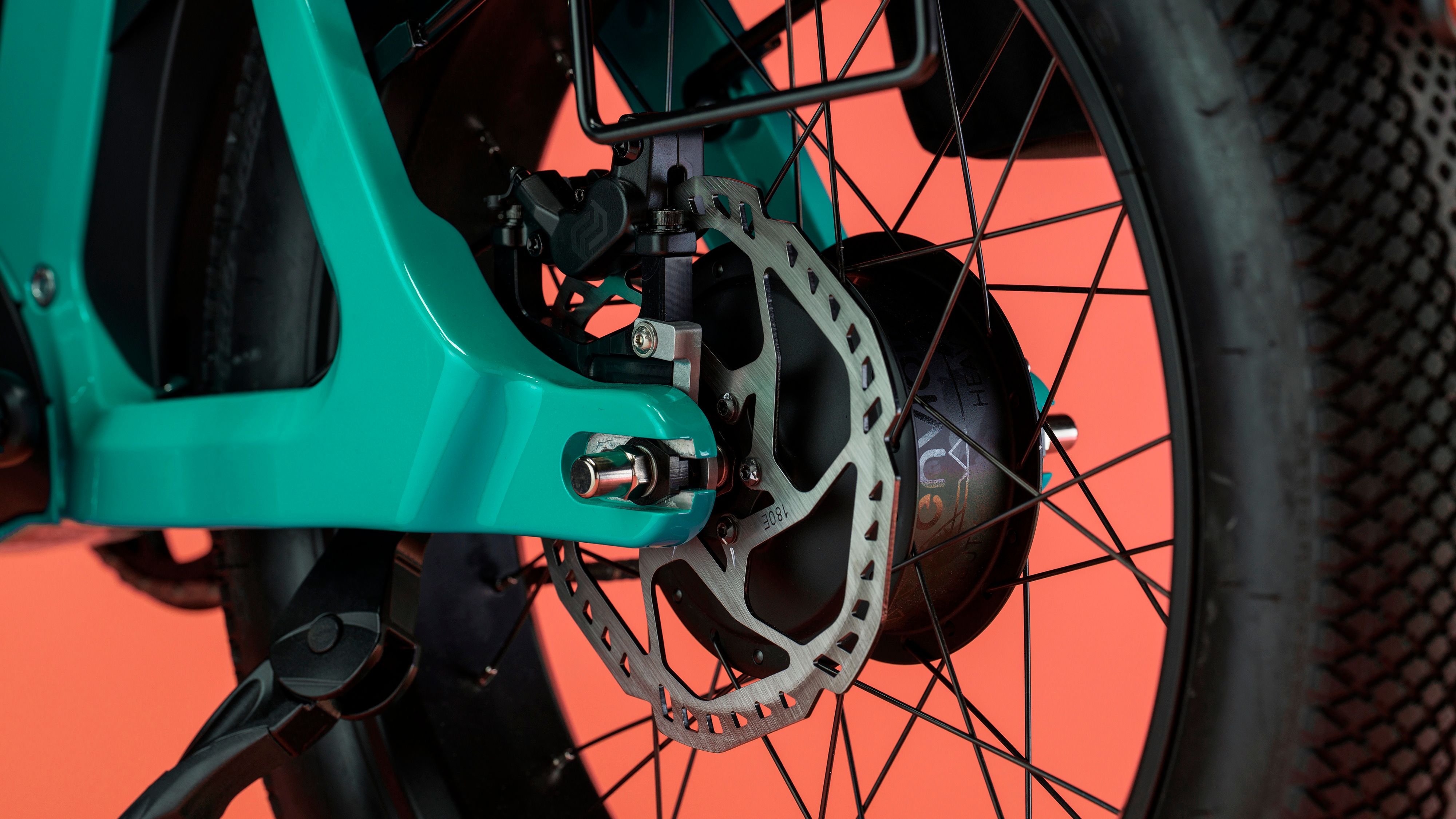

          Brakes: PROMAX DSK-925 - 180mm F&R Disc
_______________________________________________________________________

DRIVETRAIN

          Sgifters:  ENVIOLO Twist Pure
          Rear Dersilleur:  ENVIOLO Twist Pure
          Crankarm:  FSA ISIS 150mm Custom
          Chainrings:  FSA 38D
          Chain:  KMC 1v Z1eHX Narrow (1/2" X 3/32")
          Cassete:  KMC Enviolo Narrow 16T (1/2" X 3/32")
_______________________________________________________________________

WHEELSET

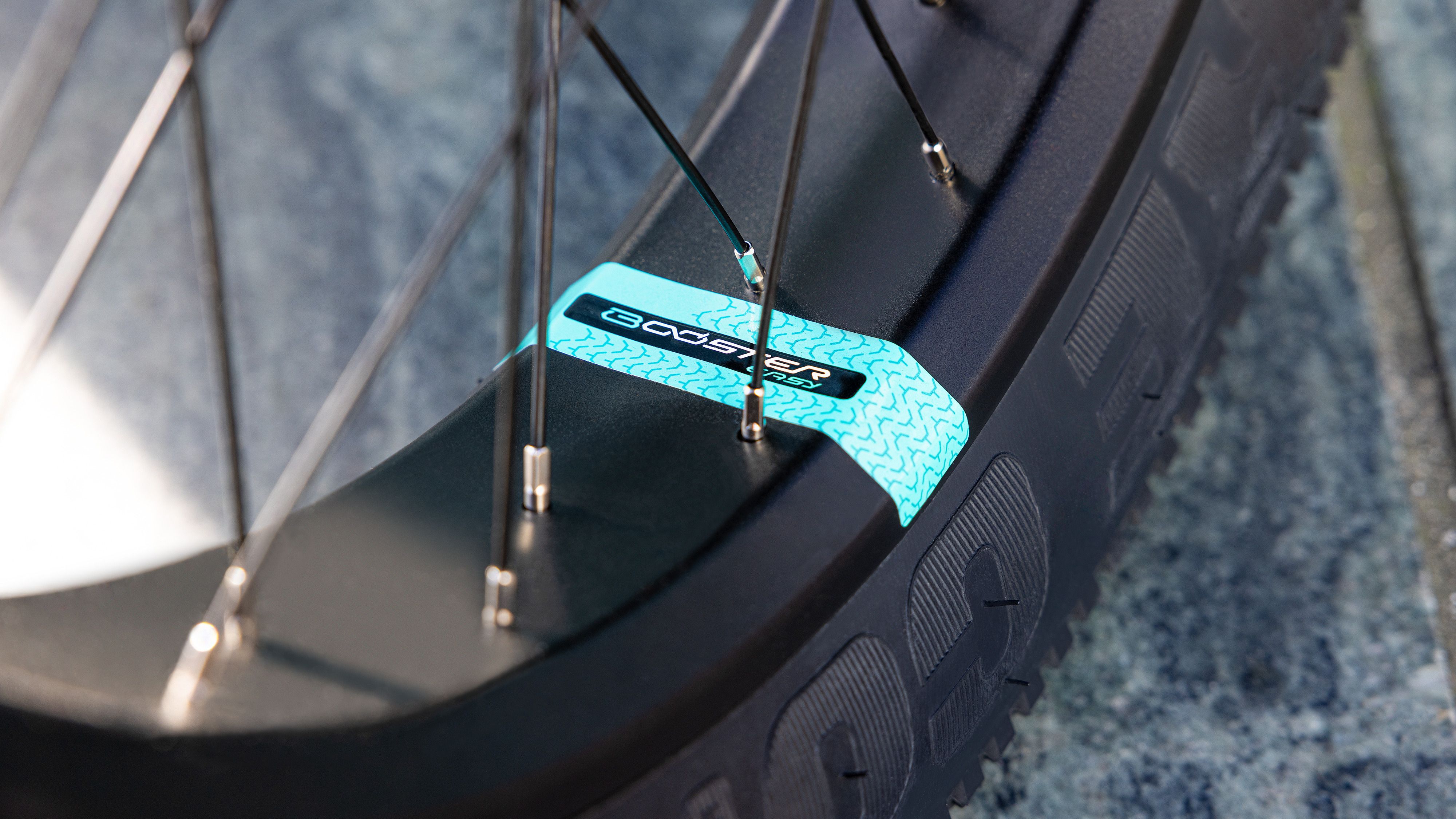

          Wheels:  GIPIEMME 20"
           Tires:  VEE TIRE eSpeedster 20*4.00
_______________________________________________________________________

 Take it Easy

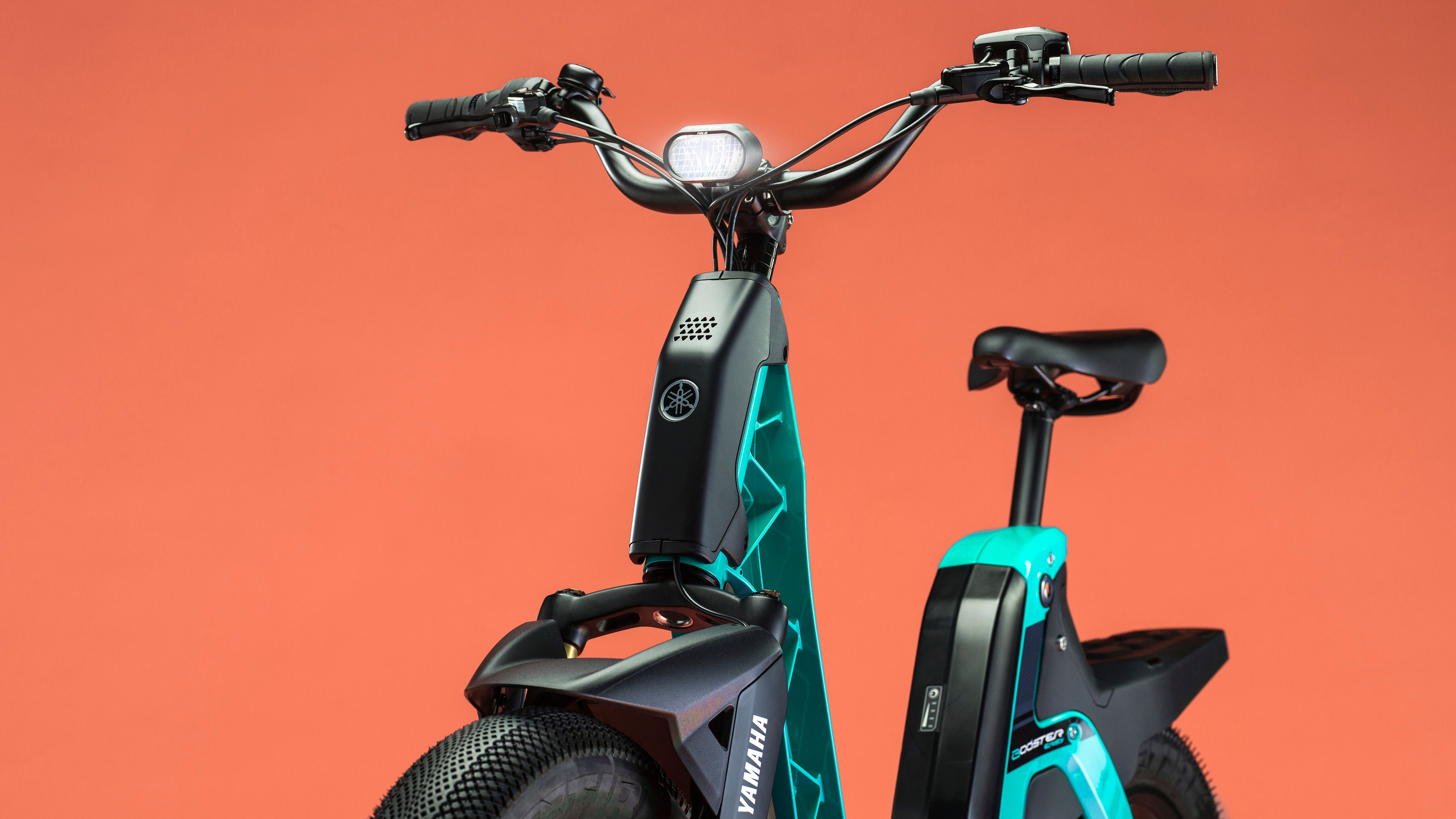

BOOSTER Easy comes fully equipped with a high specification that includes contemporary styling, lightweight instrumentation and compact LED lighting for 24/7 use. Its low center of gravity gives you easy agility with confident stability – and with its rear carrier and the option to fit baskets and inner bags, it’s functional as well as being fun.

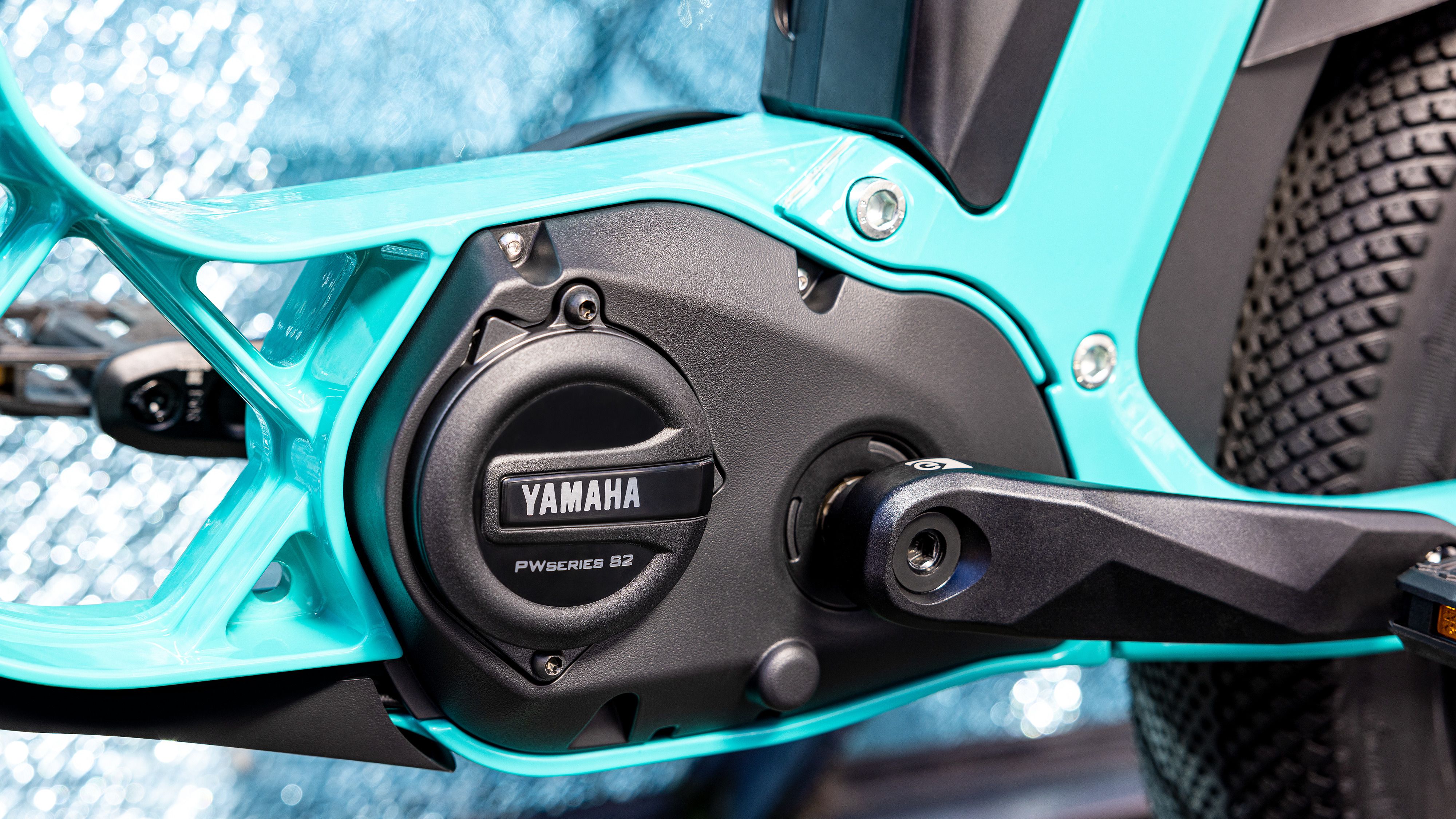

Instant pedal assistance is provided by a premium Yamaha PWseries-S2 drive unit that gives a totally natural riding feeling – and the 630Wh 36 volt Yamaha battery powers you to a maximum assisted speed of 25km/h and a range of up to 120 km.* And with convenient online ordering via Yamaha Omnichannel, your new BOOSTER Easy eBike could be just one click away! *Fully charged battery, depending on running mode.

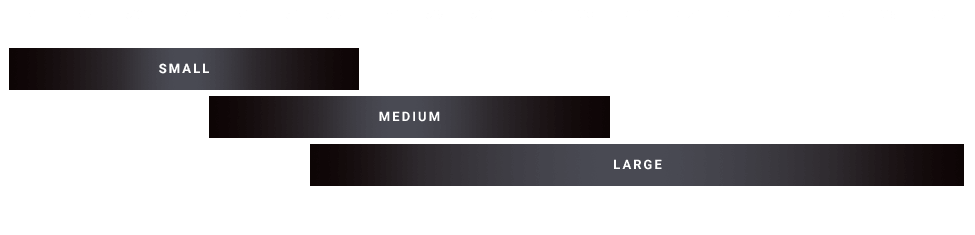

 SIZING & FIT

Odoo - Sample 1 for three columns

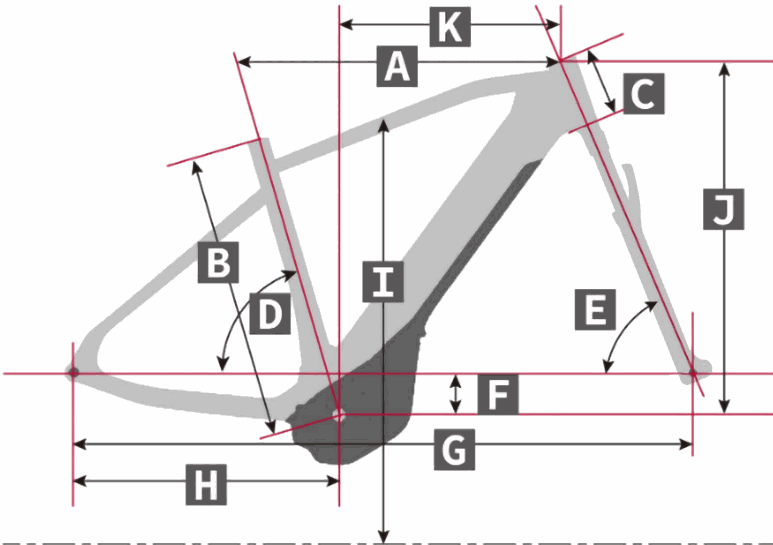

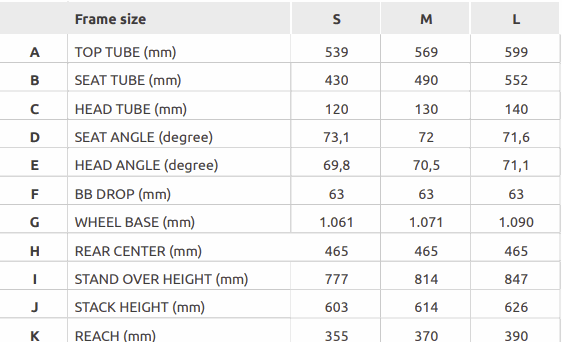

 GEOMETRY DATA BOOSTER EASY

Odoo - Sample 1 for three columns
Odoo - Sample 3 for three columns

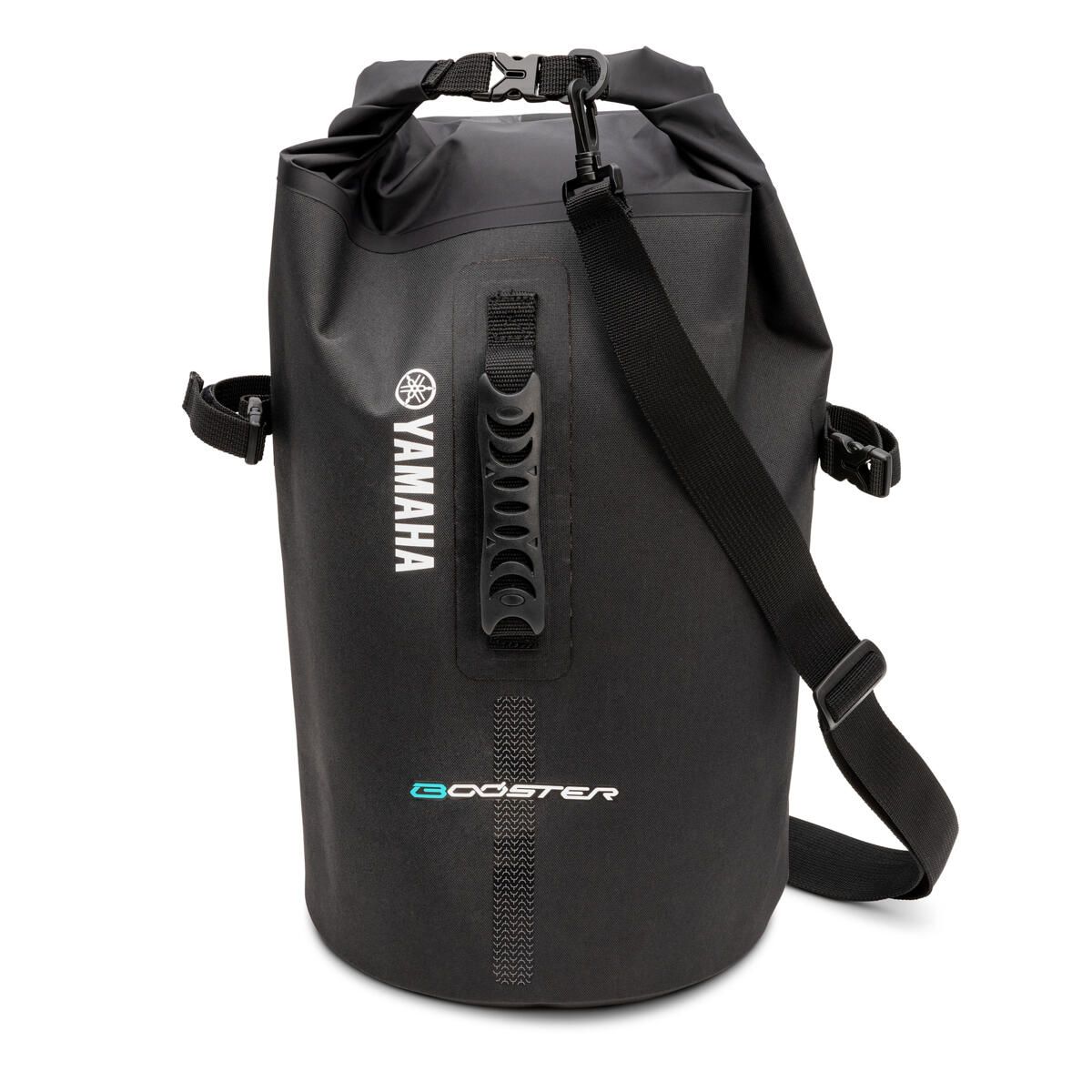

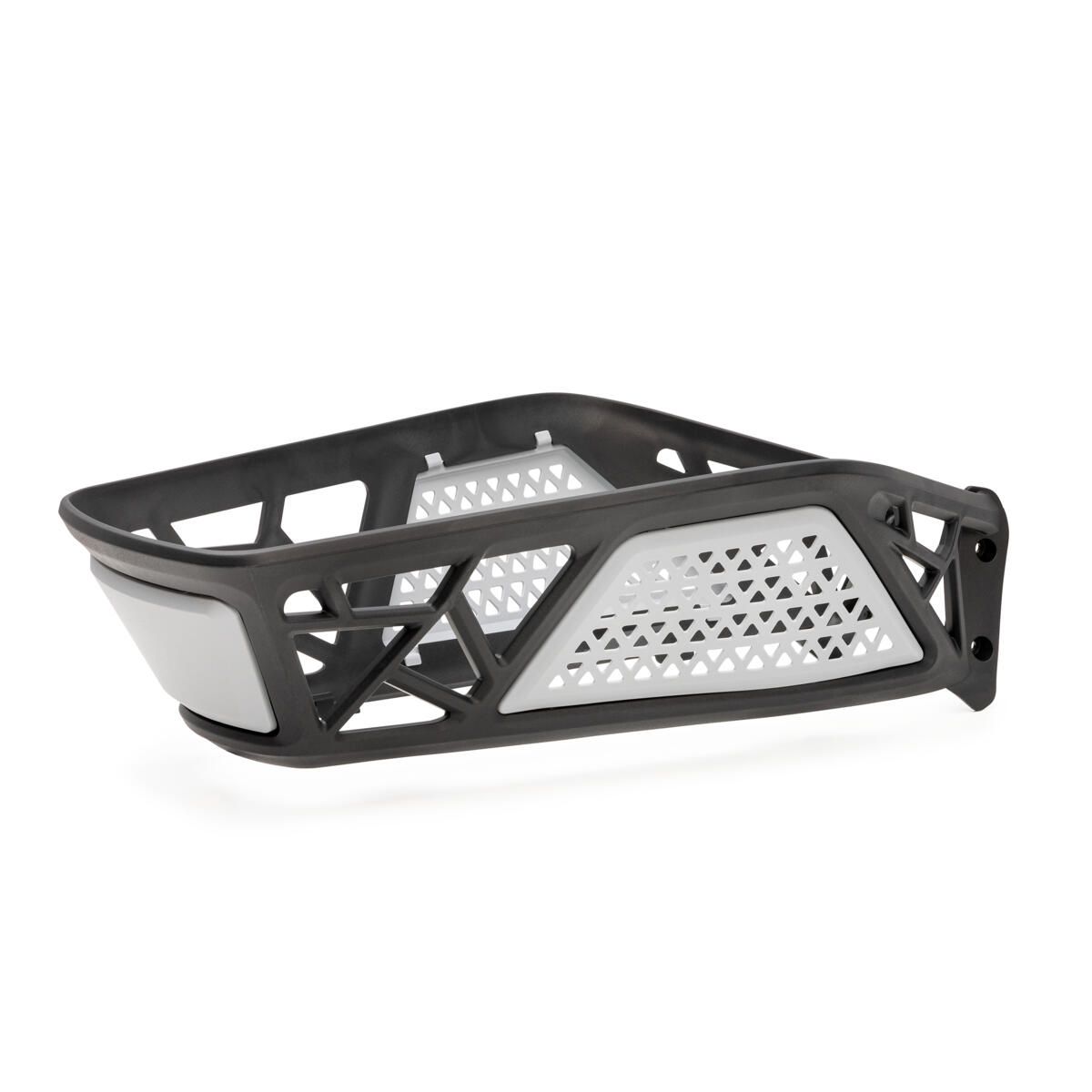

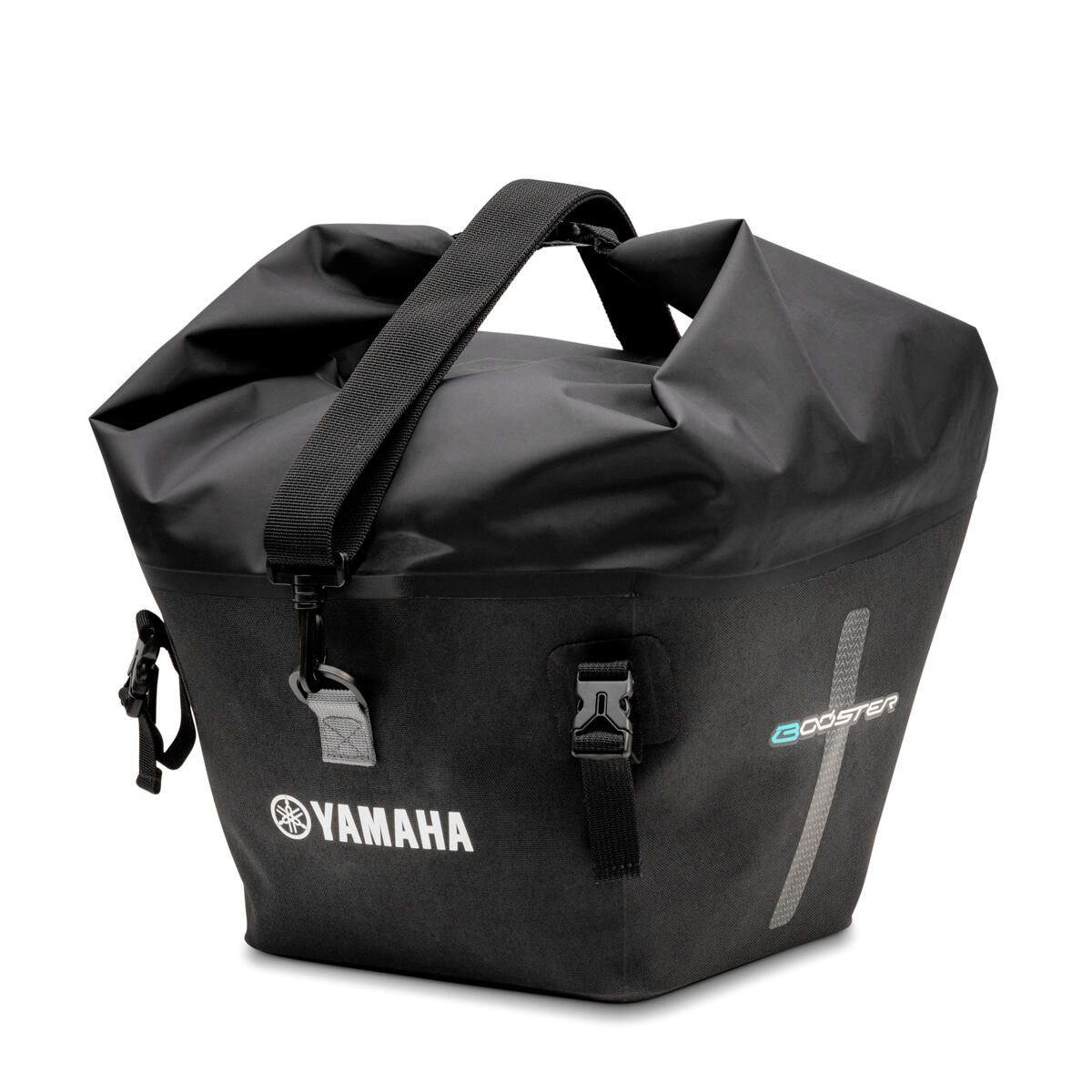

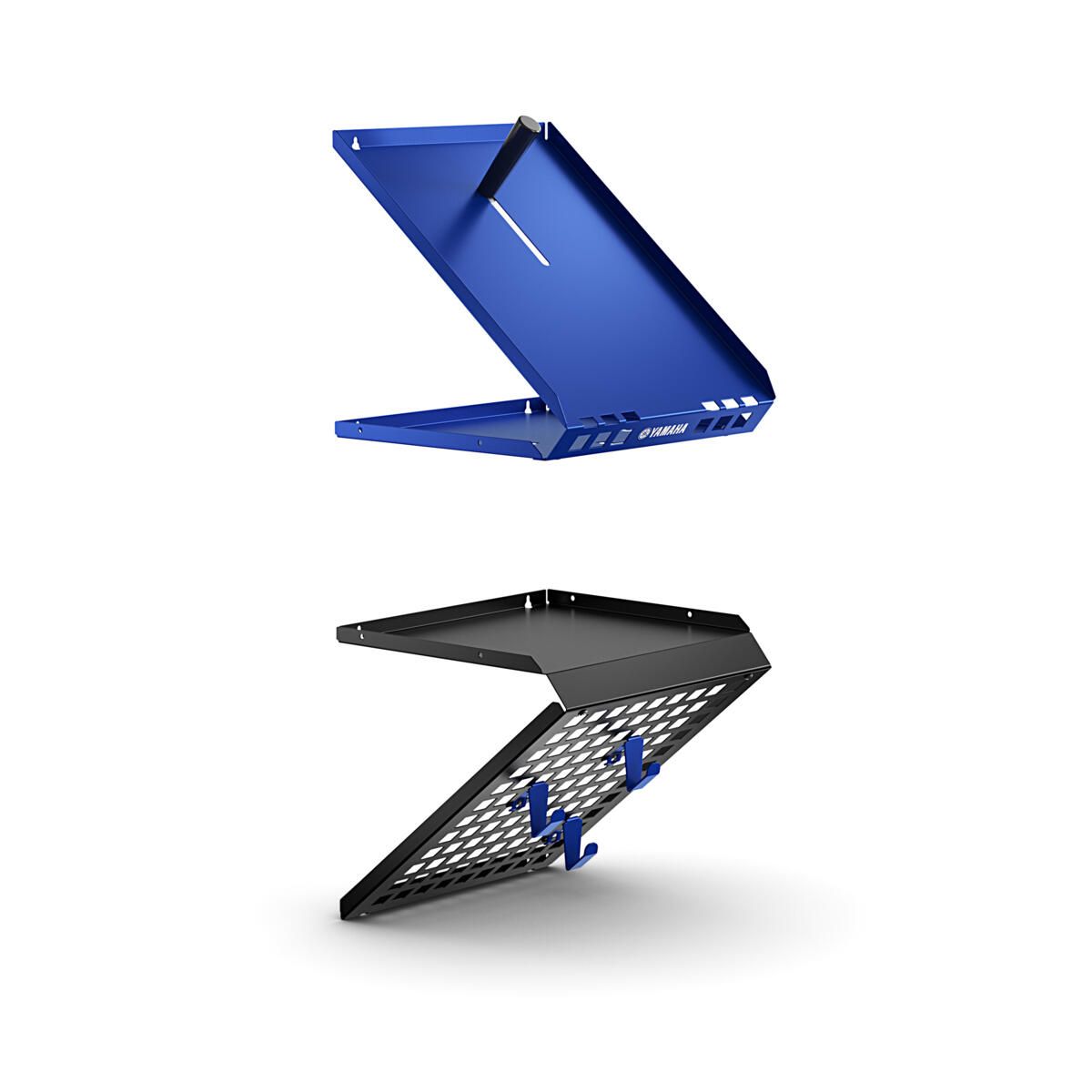

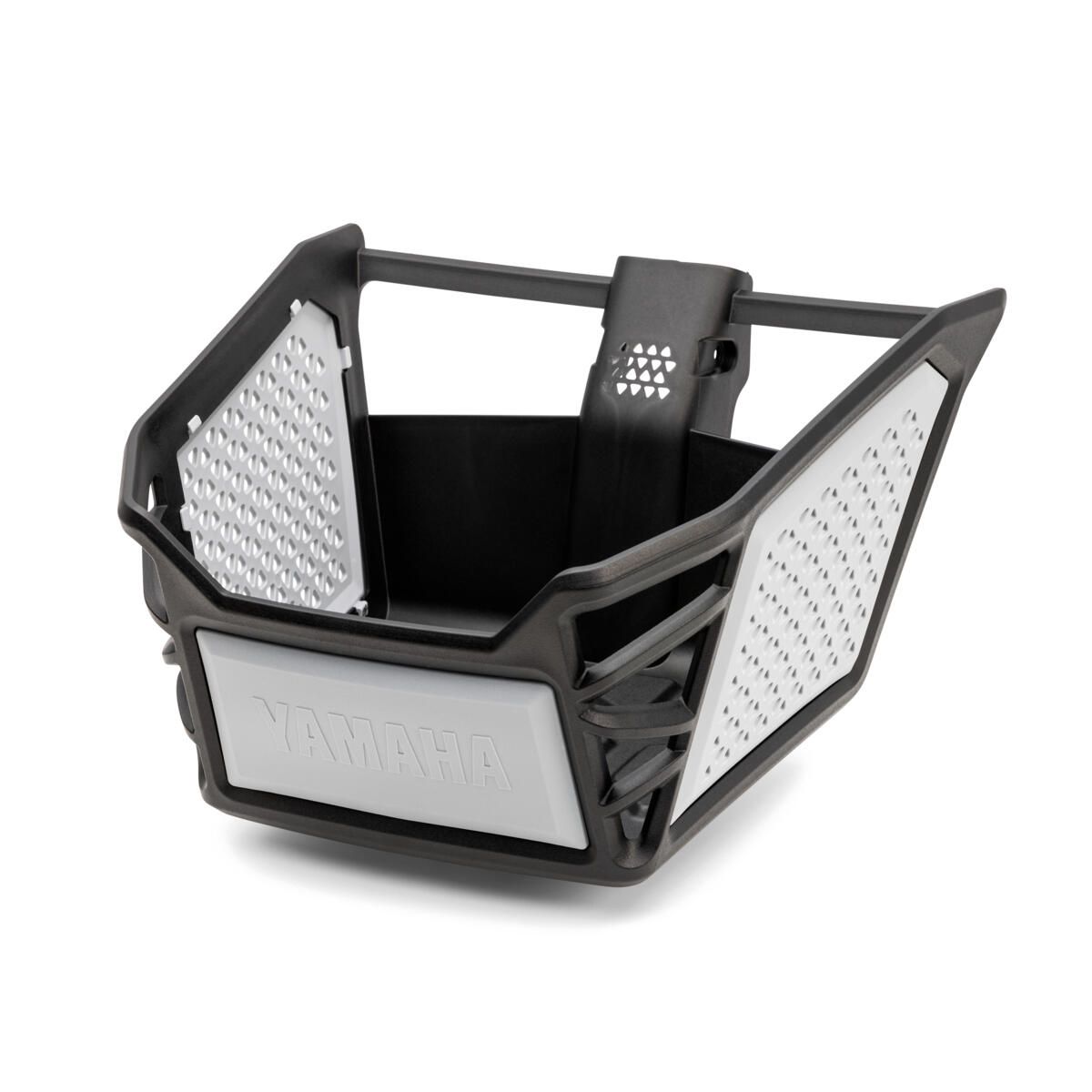

 ACCESORIES
